Top> HR 10 A - 7 J - 4 S (73)

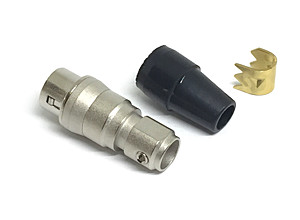

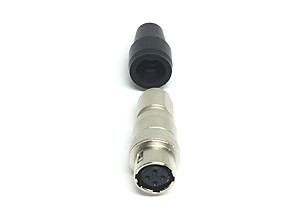

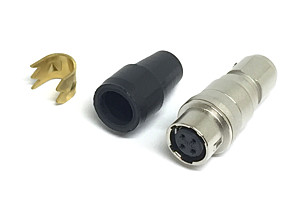

HR 10 A - 7 J - 4 S (73)

MakerName	HRS
Stock	20

Purchase quantity:

HRS round connector HRS
W to W
Circular shape
Wire side
solder
Silver plating

General specification
Product model number	HR 10 A - 7 J - 4 S (73)
EDP No	CL0110-0309-4-73
Product type	Circular Connector
Series	HR 10
Gender	Jack
Characteristic	Working temperature: -25 to 85
Number of poles	4
Connection direction	Straight
Maximum rated voltage (V)	150 (AC), 200 (DC)
Maximum rated current (A)	2A
Applicable wire (AWG)	26 - 26
Contact - finish of contact part	Silver
Lock structure	Push-pull
cable	Outer diameter 5mm
Weight (g)	7.7g
Applicable product information
Mating partner	HR 10 A - 7 P - 4 P (73) HR 10 - 7 R - C HR10-7R-C(01) HR10A-7P-4PC(73)
Applicable products	HR 10 A - 7 P - 4 P (73)
